Conformal Silicone Mold Generator Software | STL Jacket Mold Maker | Save 60% Silicone for Resin, Candle, Soap & Concrete Casts

Stop wasting expensive liquid silicone on bulky box molds—and stop spending hours modeling complex 2-part mother molds in CAD!



Conformal Mold Studio Pro is a simple, light and standalone, 100% offline desktop application that automatically converts any .STL 3D model into a complete, ready-to-3D-print Conformal Silicone Jacket Mold System in seconds.

Instead of pouring a massive block of silicone around your part, this software generates a precision-contoured 2-part rigid outer shell (mother mold) that hugs the exact shape of your model—saving you 40% to 75% on liquid silicone on every single pour while keeping your thin silicone liner rock-solid and distortion-free. This software will pay for itself fast.



✨ WHAT IT GENERATES IN 1 CLICK (4 READY-TO-PRINT STL FILES):



              Socketed Master Part (.STL): Automatically adds 2 precision blind alignment sockets into the flat base of your master model (with zero added plinth or distortion to your sculpture) so it locks dead-center onto the baseplate.



        Shell Half A — Male Keys (.STL): Ultra-smooth conformal outer jacket shell with parting flange, integrated male alignment pins, open-top pour spout, vertical level retainer collar, and 4 radial support columns.



        Shell Half B — Female Sockets (.STL): Matching conformal outer jacket shell with precision-tolerance female alignment sockets.



        Contoured Baseplate (.STL): Custom-contoured bottom plate with 2 master-part registration pins and 4 outer shell registration pins—ensuring your master model and outer shells align with sub-millimeter accuracy.



🚀 KEY FEATURES & CUSTOMIZATION:

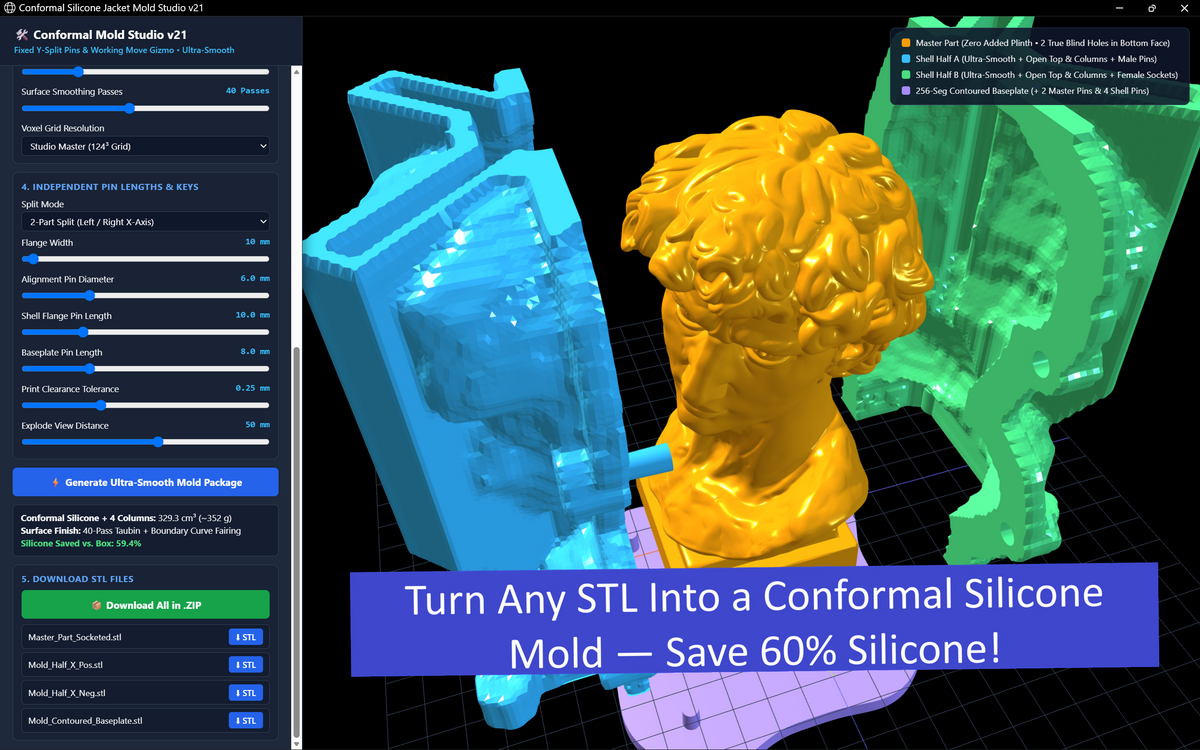

              Massive Silicone Savings: Live volume & weight calculator shows you the exact 〖"cm^3 and grams of silicone needed, plus your exact percentage saved compared to a traditional box mold.

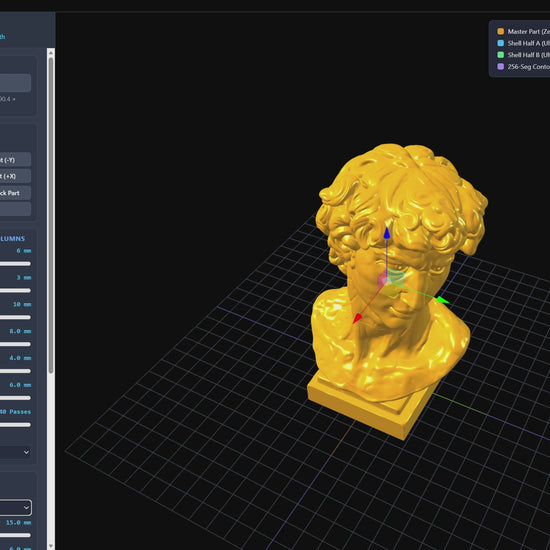

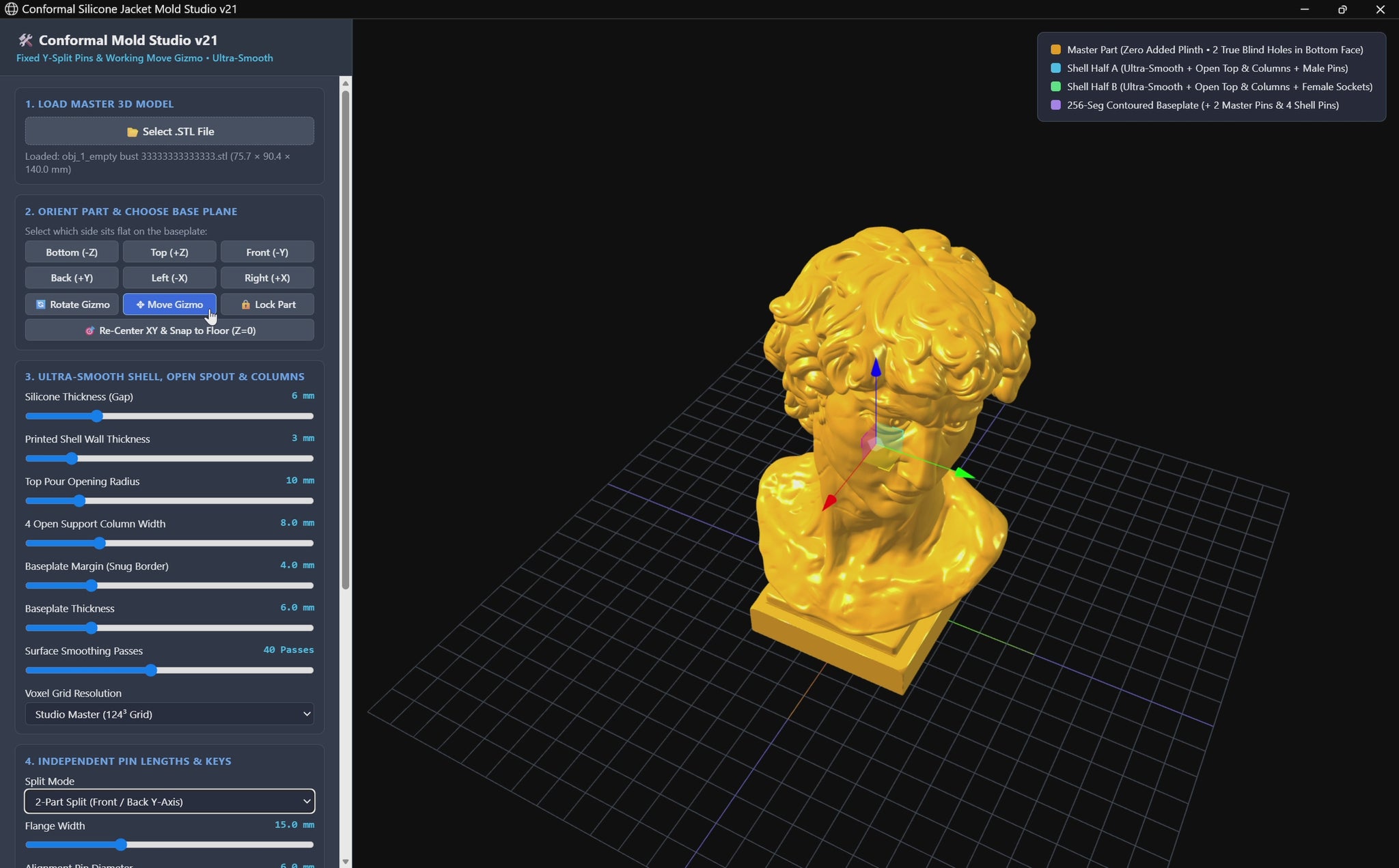

              Built-In 3D Part Orientation & Base Selector: Rotate, translate, or snap any face (-Z, +Z, -Y, +Y, -X, +X) flat to the build plate right inside the viewport.

              4 Open-Top Silicone Support Columns: Automatically generates 4 radial buttress fins that fill with silicone during your pour, creating thick structural silicone ribs that sit flush with the top rim so your flexible liner never sags when inverted for resin/wax pouring.

              Flush Top Retainer Collar: Automatically levels the top pour rim so the entire shell sits dead-flat on your workbench when turned upside down.

              Fully Adjustable Parameters:

              Silicone Gap Thickness (2.0 mm – 20.0 mm)

              Printed Shell Wall Thickness (2.0 mm – 10.0 mm)

              Top Pour Opening Radius (6.0 mm – 32.0 mm)

              4 Support Column Width (5.0 mm – 18.0 mm)

              Baseplate Margin & Thickness

              Independent Shell Flange Pin & Baseplate Pin Lengths

              3D Printer Clearance Tolerance (0.10 mm – 0.60 mm) for a perfect snap fit on any FDM or SLA printer

              Multi-Pass Taubin Surface Smoothing & Up to 124³ Studio Master Voxel Resolution

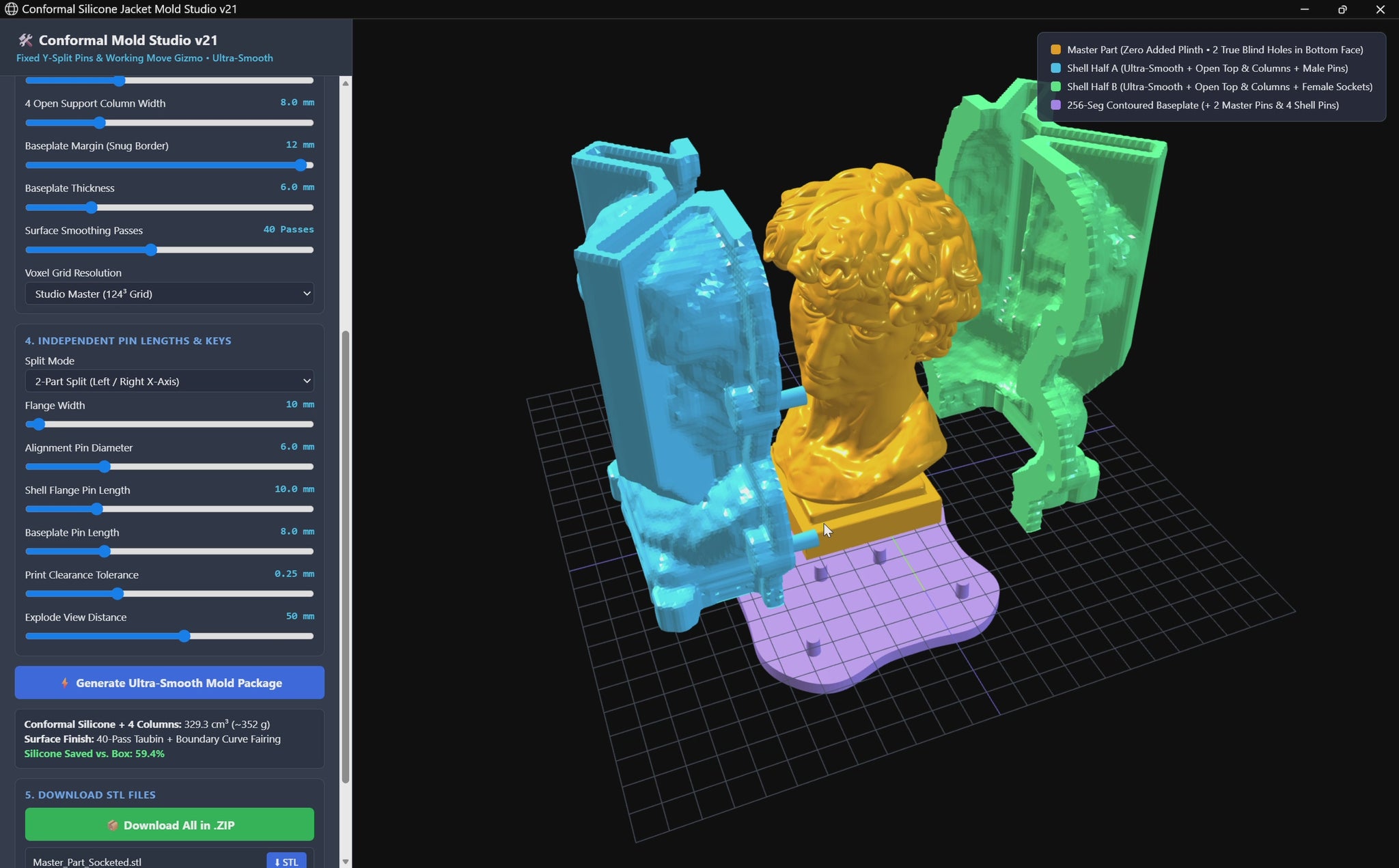

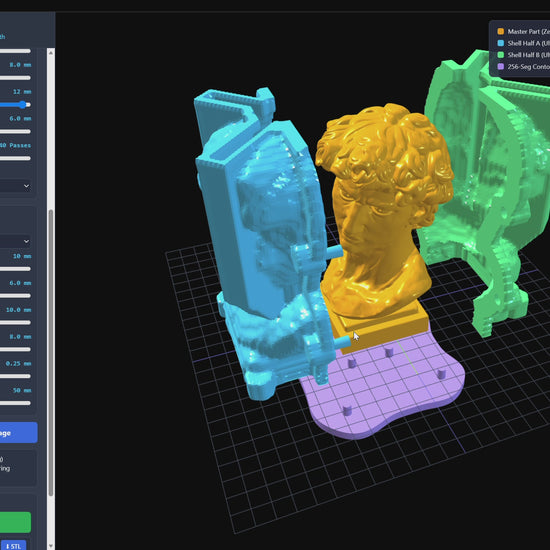

              Interactive Exploded View Slider: Inspect the internal silicone gap, pin engagement, and parting seam in 3D before exporting.

              1-Click .ZIP or Individual .STL Export: Download all 4 parts at once in a single .zip bundle or as individual binary .stl files ready for Bambu Studio, PrusaSlicer, Cura, or Lychee.

💻 SYSTEM REQUIREMENTS & DELIVERY:

              Instant Digital Download: Receive your software package immediately after purchase.

              100% Standalone & Offline: No subscription, no internet connection required, no CAD software needed, and no extra installations.

              Cross-Platform Compatibility: Includes the standalone Windows executable (ConformalMoldStudio_v21.exe) for PC

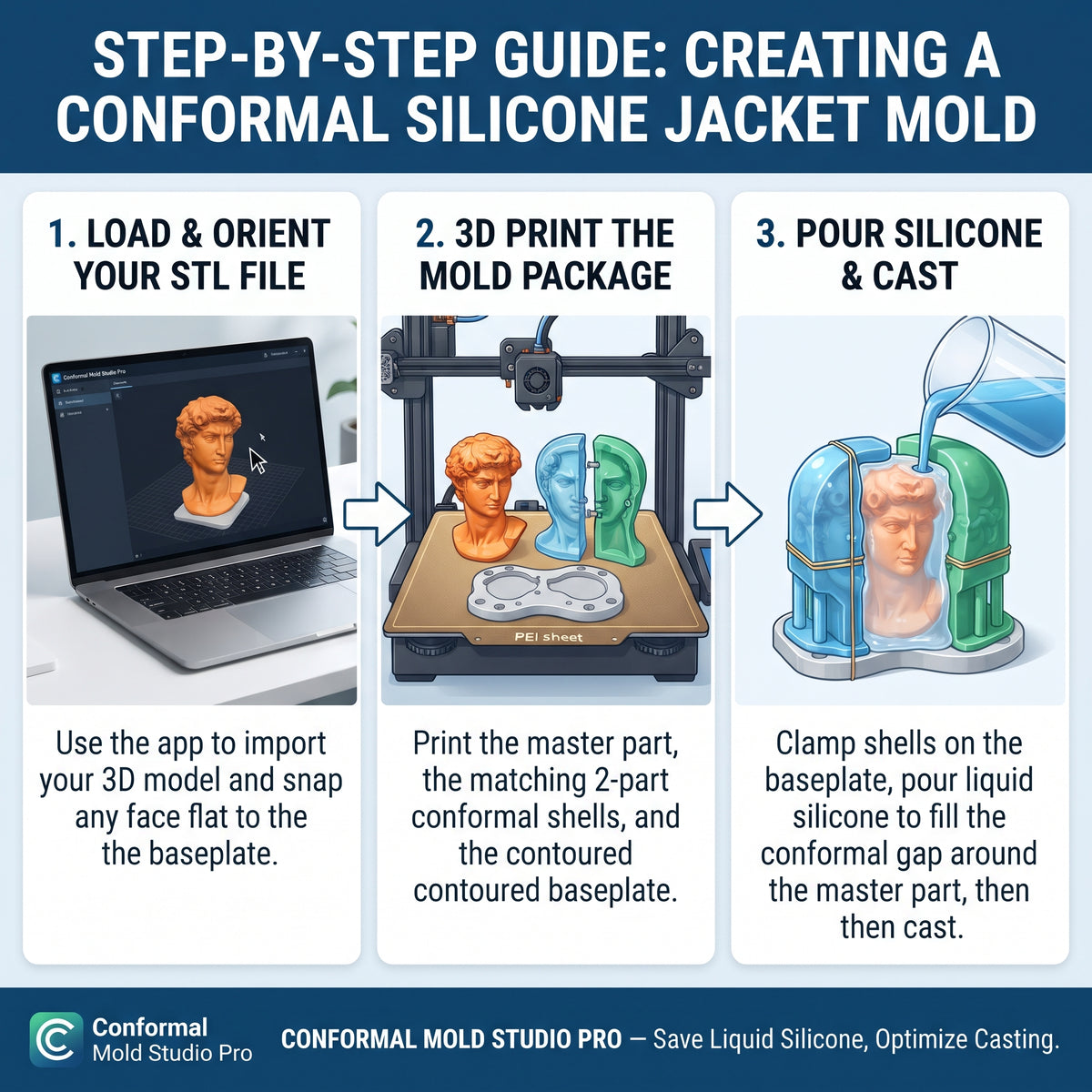

🛠️ HOW IT WORKS IN 3 EASY STEPS:

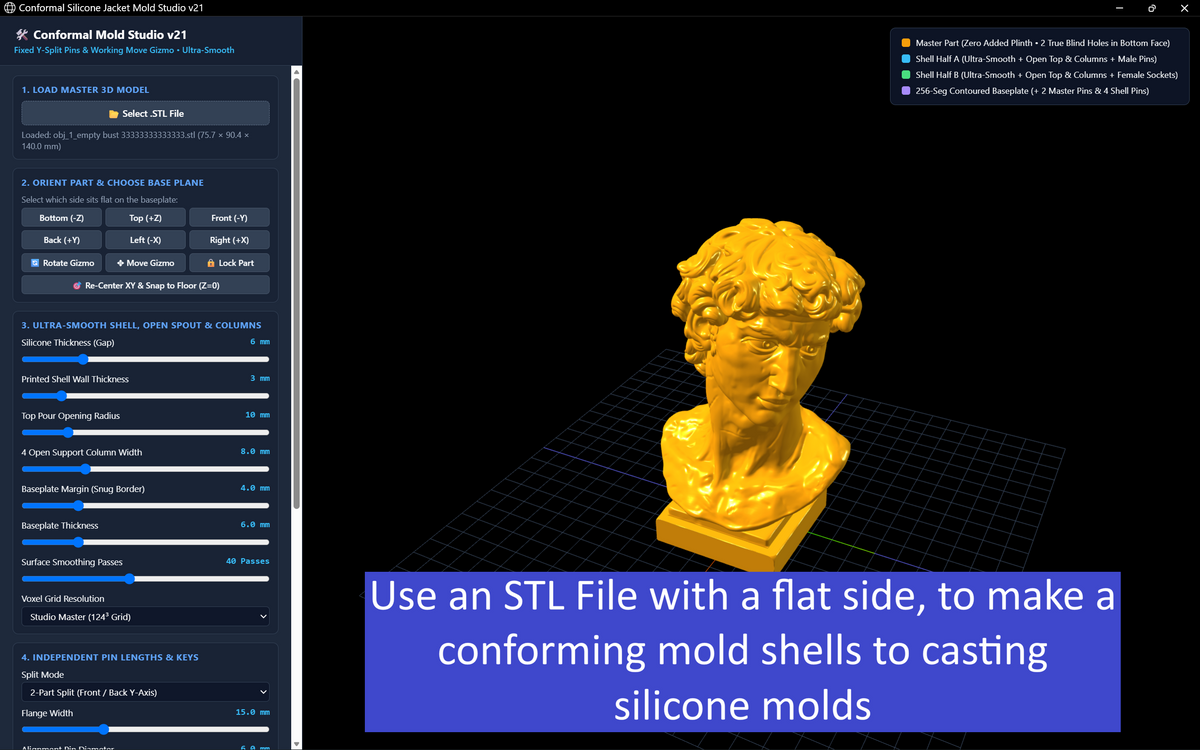

              Load Your .STL: Open the app and select any 3D model. Choose which face sits flat on the baseplate.

              Customize Your Fit: Adjust your desired silicone thickness, shell wall thickness, and printer clearance tolerance using the live sliders.

              Generate & Print: Click "Generate Ultra-Smooth Mold Package", download your .ZIP of 4 .STL files, print them on any 3D printer, clamp the halves together, and pour your silicone!

Note: This is a digital software product. No physical item will be shipped. Due to the nature of instant digital downloads, all sales are final, but please message me if you have any questions or need help dialing in your settings!
